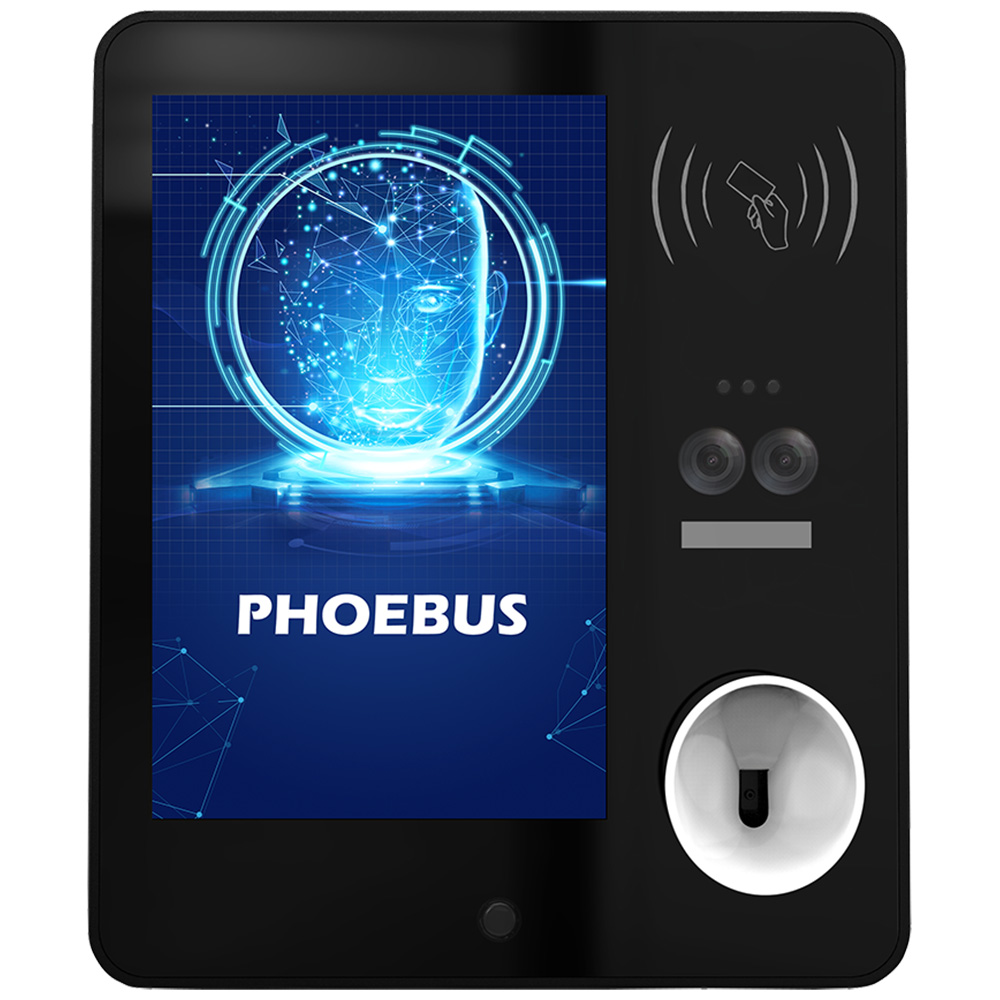

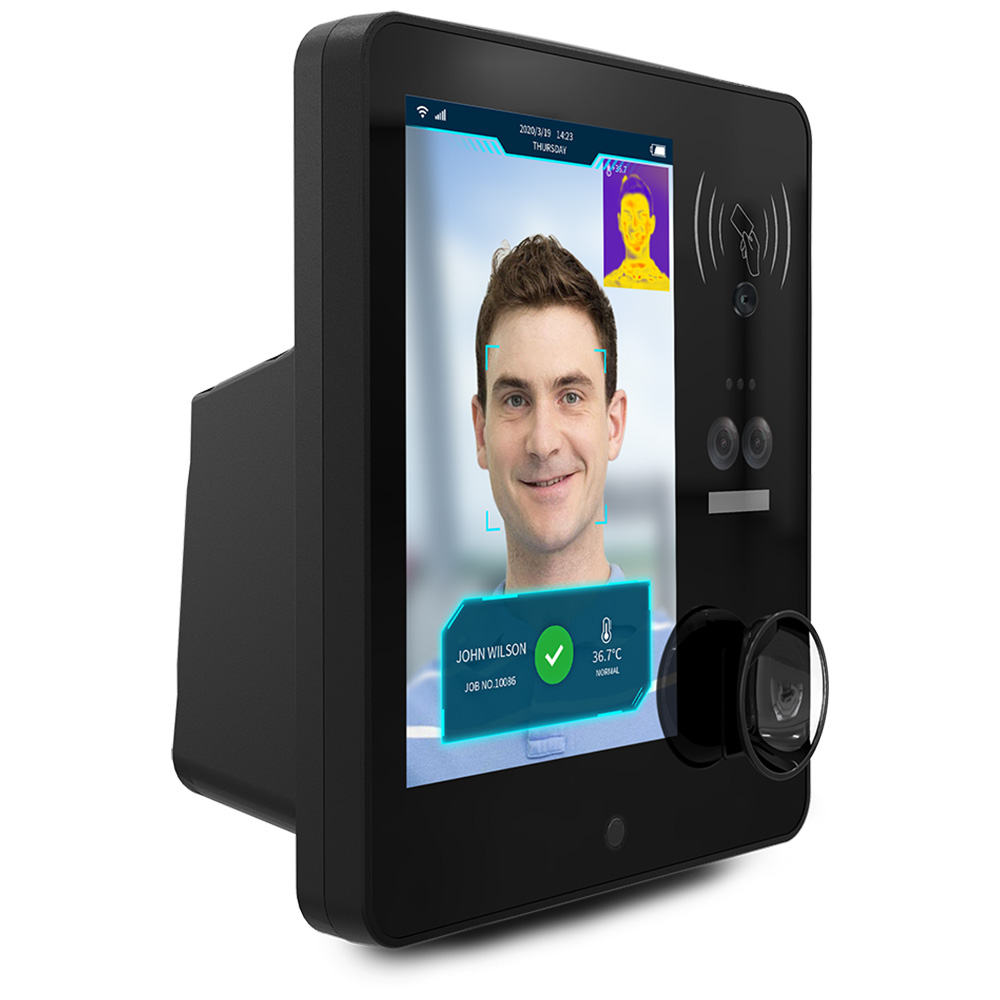

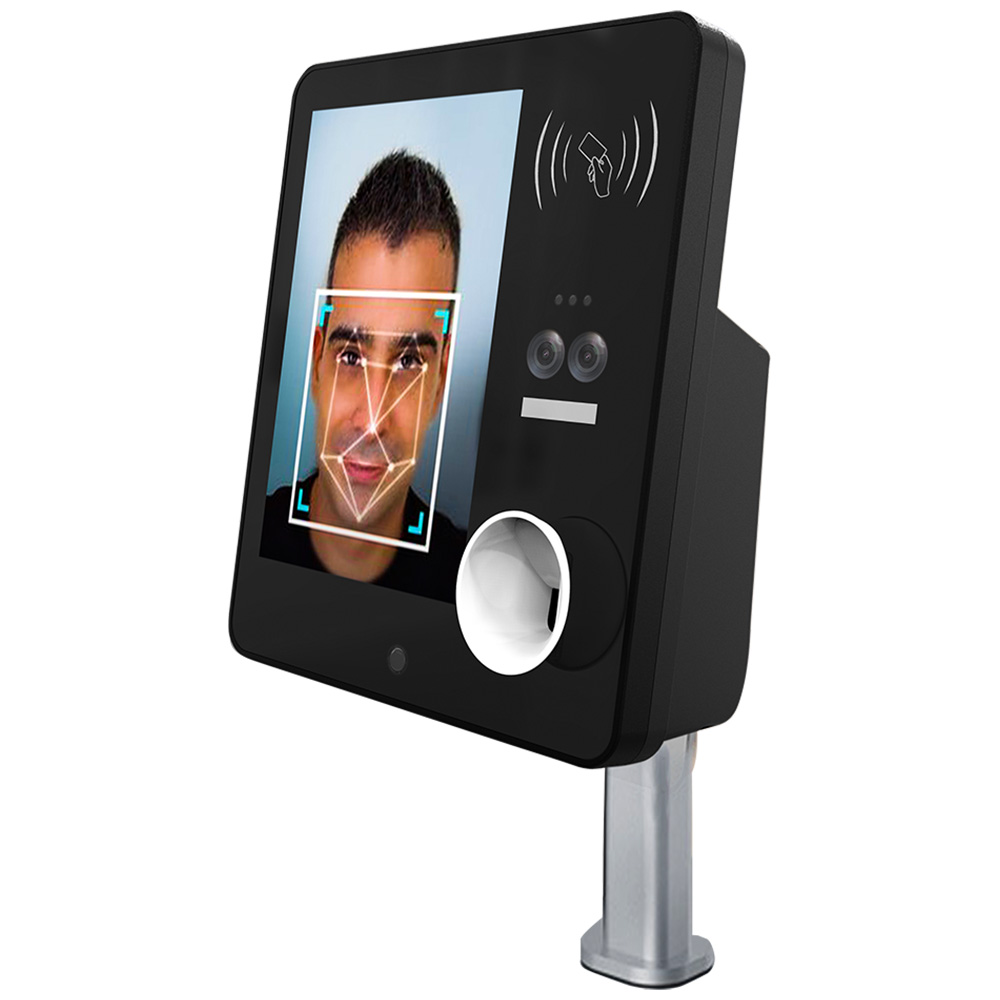

Alcovisor Phoebus Access Control Breathalyzer Pro

Alcovisor Phoebus Access Control Breathalyzer Pro

The Alcovisor Phoebus Access Control Breathalyzer Pro sets the highest standard for workplace safety, engineered for high-security environments across South Africa. This advanced system provides irrefutable evidence and eliminates malpractice, ensuring your business is fully compliant with the Occupational Health and Safety Act.

The Alcovisor Phoebus Access Control Breathalyzer Pro advances beyond standard testing with its core feature: a high-speed, dual-camera facial recognition system. This ensures the identity of the individual is verified before and after the breath sample is provided, making it impossible to cheat the test. Each of the 20,000 stored test records is captured with a photo, providing undeniable proof for HR and safety compliance procedures.

For industries where positive identification is non-negotiable—such as mining, aviation, and logistics—the Alcovisor Phoebus Access Control Breathalyzer Pro is the definitive choice. It guarantees that the person being granted access is the same person who passed the test, securing your site against unauthorized or unfit individuals.

Key integration and security features include:

• Dual-Camera Facial Recognition: High-speed, 2-stage identity verification prevents “buddy testing” and ensures accountability.
• Photo-Linked Test Records: Every test result is stored with a corresponding photo, creating an unchallengeable audit trail.
• Direct Access Control: An output relay contact automatically triggers gates or turnstiles upon a “Pass” result, integrating seamlessly with your site’s physical security.

Optional Upgrade: For maximum compatibility, an external Wiegand converter is available. If your current access control system doesn’t support RS232, this module ensures the Phoebus Pro can communicate “Ready,” “Fail,” or “Pass” signals, making it compatible with virtually any security infrastructure.

SPECIFICATIONS

• Sensor Technology: Law-Enforcement Grade Electrochemical Fuel Cell for precision and reliability.
• Identification: High-Speed Dual-Camera Facial Recognition & NFC Card Reader.
• Operating System: Android OS for a user-friendly and stable experience.
• Memory Capacity: 8GB Internal Storage.
• Test Record Storage: On-board memory for up to 20,000 tests with photo evidence.
• Operating Temperature: Built for tough South African conditions (-10°C to 50°C).
• Storage Temperature: -20°C to 50°C.
• Humidity Range: 20% to 95%.
• Dimensions: 20cm x 24cm x 11cm.
• Weight: 1588g.
• Power Supply: AC 100-240V 50-60Hz | DC12V 3A.
• Fast Response Time: Results in under 5 seconds.
• Sampling Method: Automated deep-lung air sampling for accurate measurement.
• Units of Measure: BrAC: mg/L | BAC: grm%, mg/mL, mg/100ml.
• Detection Range: 0.00% BAC to 0.40% BAC.
• Certified Accuracy: 0 – 0.10% BrAC +/-5% | 0.10 – 0.15% BrAC +/-8% | >0.15% +/-10%.
• Easy Maintenance: The alcohol testing module is fully replaceable for simple on-site calibration and service.
• Sample Time: Requires a 4-second continuous breath sample.
• Rapid Recovery Time: Ready for the next test just 30 seconds after a positive result.
• Full Access Control Communication: Output Relay (N/O, N/C) | RS232 Serial Port | Optional Wiegand Converter with I/O Expander.
• Connection Port: USB for data transfer.
• Network Connectivity: Wi-Fi, Ethernet, and optional 4G.
• NFC Support: Integrated NFC reader for card-based identification.

For ultimate security and accountability, choose the system that leaves no room for doubt. Contact us today for a quote or to schedule a demonstration of the Alcovisor Phoebus Access Control Breathalyzer Pro.
